Student Academic Record Domain - Model Diagrams
This section contains reference information for the Student Academic Record domain model.
Student Academic Record Model UML Diagram​
Detailed Student Academic Record Model UML Diagram​
Student Transcript Subdomain​
The Student Transcript Model provides an academic history for a student.

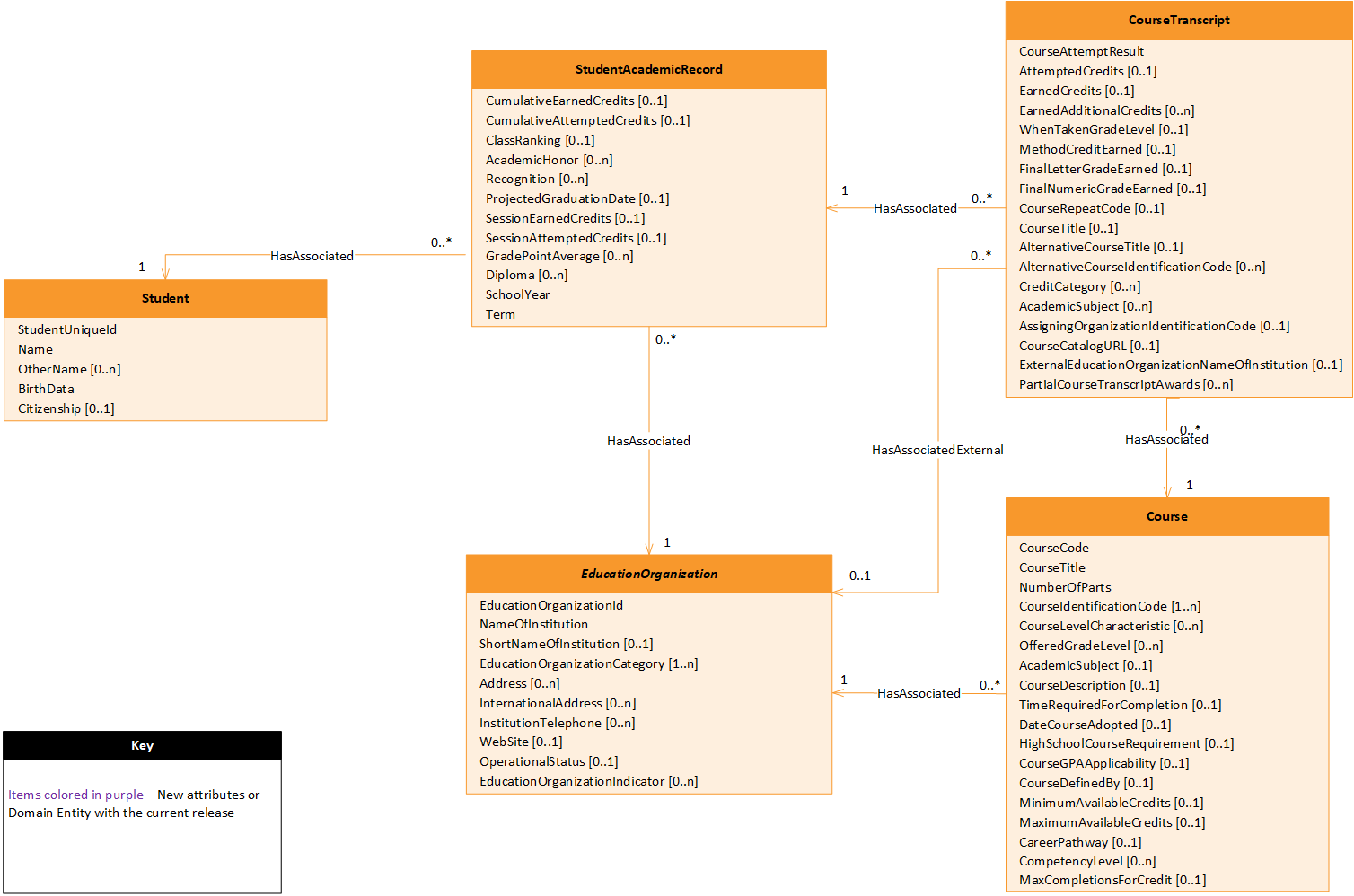

Student Academic Record, Student Transcript Model UML Diagram​
Detailed Student Academic Record, Student Transcript Model UML Diagram​
Report Card Subdomain​
A Student has a ReportCard for each GradingPeriod. A Grade is associated with each Section. For early grade levels, a StudentCompetencyObjective is assigned to CompetencyObjectives.

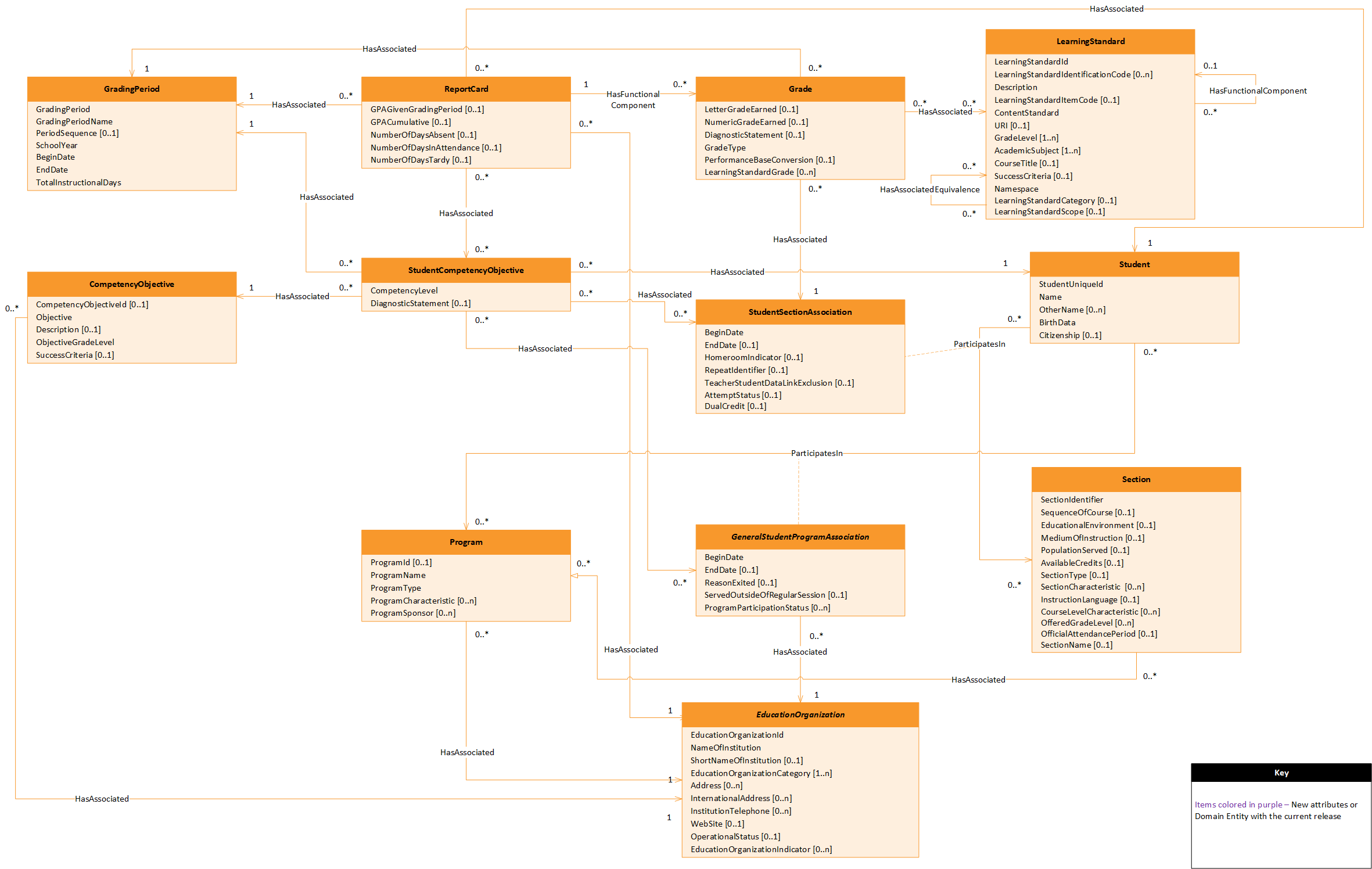

Student Academic Record, Report Card Model UML Diagram​
Detailed Student Academic Record, Report Card Model UML Diagram​

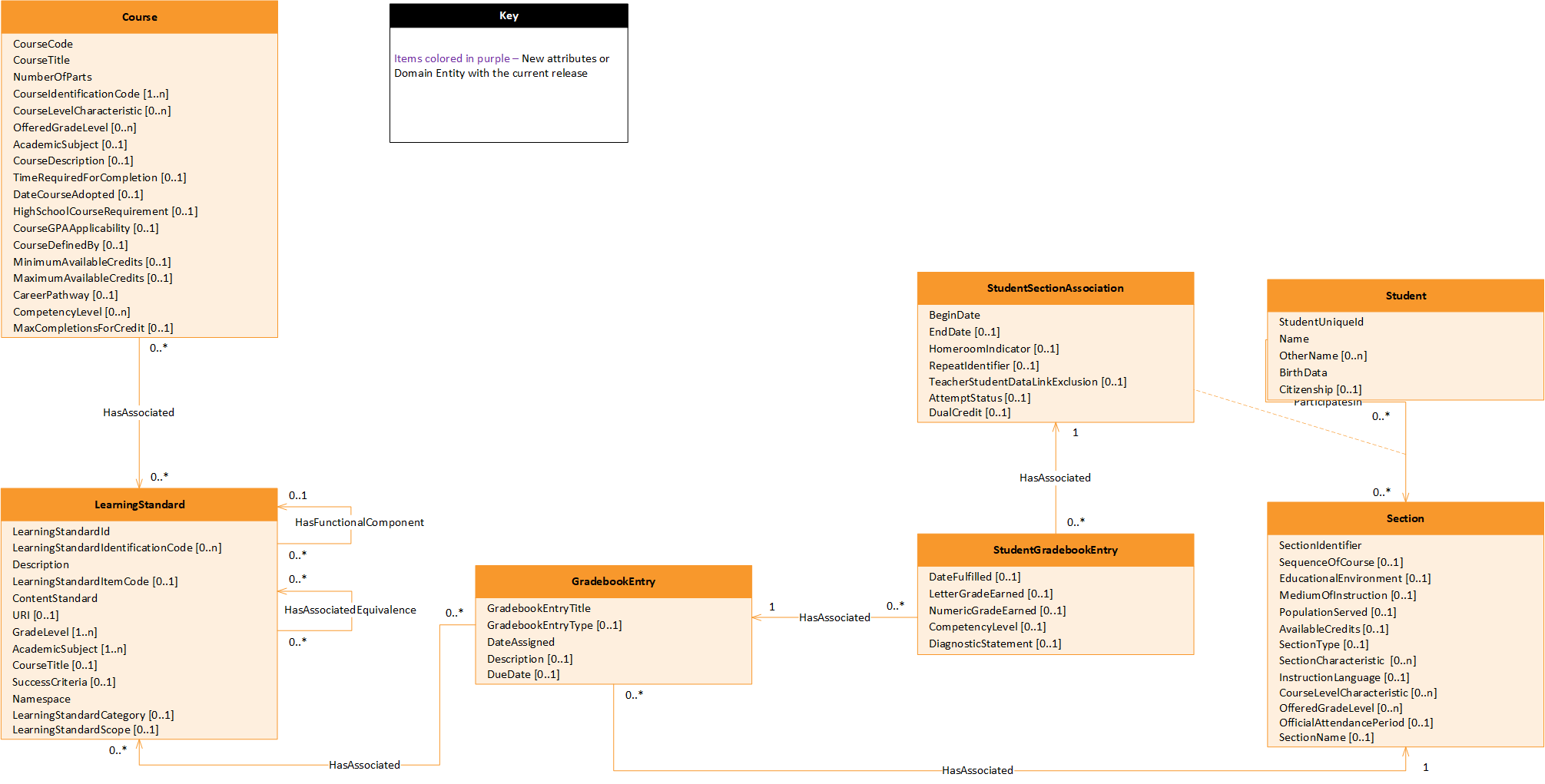

Student Academic Record, Gradebook Model​
An individual assignment in a gradebook is represented as a GradebookEntry. A GradebookEntry may be mapped to LearningStandards. Each student's score for that entry is a StudentGradebookEntry which can be a grade or a CompetencyLevel.
