Student Health Domain - Model Diagrams
Student Health Model UML Diagram
The Student Health data model provides for recording the immunization history of students. It does not include information about the specific requirements for immunization since this information likely lives outside the likely source of student immunization systems. Analysis and reporting of whether students satisfy the immunization requirements will need to access the definition of requirements outside the ODS.
A new entity StudentHealth is defined to enable separate access control in the Ed-Fi API claimsets and in the ODS tables suitable for health data according to policy. The StudentHealth entity has the following key:
- Student reference
- EducationOrganization reference *
The referenced EducationOrganization should reflect the level (i.e., SEA, LEA, School) of organization that is responsible for maintaining the student health data in the ODS.
Because the content of the StudentHealth entity is cumulatively historical, the required AsOfDate is not a key, but is used to reflect the date the record was last updated.

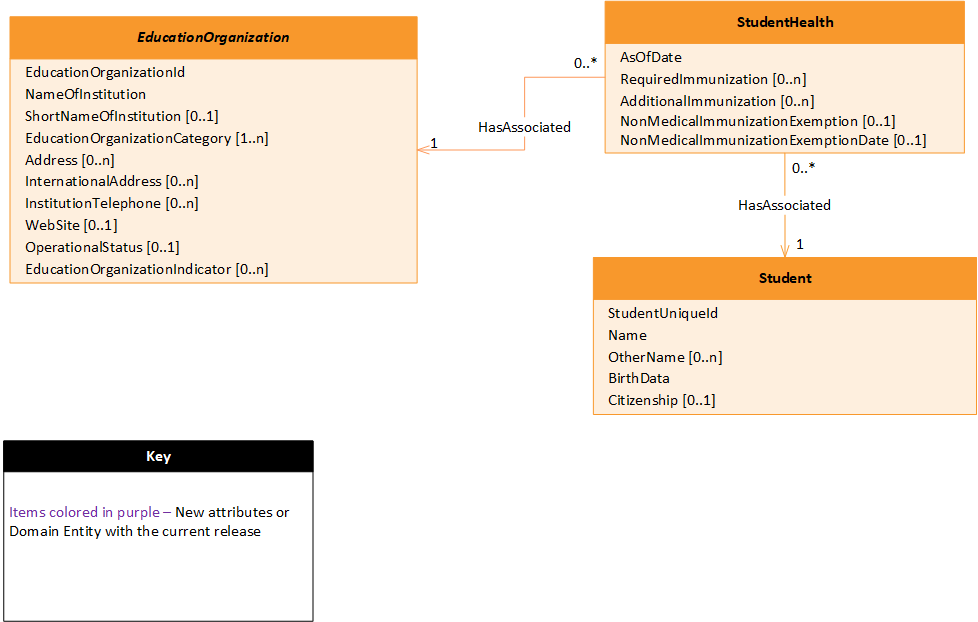

The data model UML diagram is shown below.
